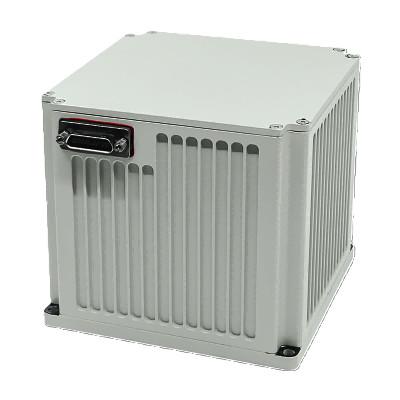

Merak-M1 FOG INS System Solutions

Name: MerakM1 FOG INS System Solutions
Brand: Star & Inertia Technology
Price: 1000 USD

Brand Name : Star & Inertia Technology

Model Number : Merak-M1

Place of Origin : China

MOQ : 1 set

Price : $1000-$100000

Payment Terms : T/T

Supply Ability : 100 set per year

Delivery Time : 30 work days

Alignment time : ≤15min

Position accuracy/Pure inertia : ≤1nm/1h,CEP

Position accuracy/Inertia/DVL Combination : ≤0.3%D,RMS

Position accuracy/Inertia/GNSS Combination : better than GNSS

Speed accuracy/Pure inertia : ≤1.2kn,RMS

Speed accuracy/GNSS combination : ≤0.4kn,RMS

Heading Accuracy/Pure inertia : ≤0.05°sec(L),RMS

Heading Accuracy/INS/GNSS combination : ≤0.02°,RMS

Pitch & Roll Accuracy/Pure inertia : ≤0.02°,RMS

Pitch & Roll Accuracy/INS/GNSS combination : ≤0.01°,RMS

Dimensions(Lmm×Wmm×Hmm) : 161×153×123mm

Weight : 3.5kg

Temperature : -40℃~60℃

Input Voltage : DC24V(±25%)

Contact Now

Maritime FOG INS(Merak-M1)

This marine INS utilizes RLG/FOG gyros and quartz accelerometers in a strapdown configuration. Its high-speed processor computes real-time navigation solutions, supporting multiple modes (inertial, GNSS, velocity) to provide complete navigation data for various vessels. The system delivers reliable performance in demanding maritime conditions.

Series		Maritime Inertial Navigation System(INS-M)
Type		Merak-M1
Accelerometer	Months Bias Repeatability(1σ)	≤30μg
Accelerometer	Months Scale Factor Accuracy(1σ)	≤30ppm
Gyro	Bias Repeatability(1σ)	≤0.005°/hr
	Scale Factor Accuracy(1σ)	≤20ppm
	Random walk(1σ)	≤0.002°/√hr
Features	Angular Rate	≥±400°/sec
	Angular Acceleration	100000°/sec2
	Acceleration	＞25g
	Angular Attitude	Any Orientation
	Speed accuracy/Pure inertia	≤1.2kn,RMS
	Speed accuracy/GNSS Combination	≤0.4kn,RMS
	Startup time	≤10 sec
	Input/output	3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time		≤15min
Position accuracy	Pure inertia	≤1nm/1h,CEP
	INS/DVL Combination	≤0.3%D,RMS
	INS/GNSS Combination	better than GNSS
Heading Accuracy	Pure inertia	≤0.05°sec(L),RMS
Heading Accuracy	INS/GNSS Combination	≤0.02°,RMS
Pitch & Roll Accuracy	Pure inertia	≤0.02°,RMS
Pitch & Roll Accuracy	INS/GNSS Combination	≤0.01°,RMS
Characteristics	Power consumption	＜18W
	Dimensions(Lmm×Wmm×Hmm)	161×153×123mm
	Weight	3.5kg
	Temperature	-40℃~60℃
	Shock	15g,Half-sine wave 11ms
	Input Voltage	DC24V(±25%)
	cooling	Conduction to mounting plate
	Vibration	20~2000Hz,6.06g
	MTBF	＞20000 hours
