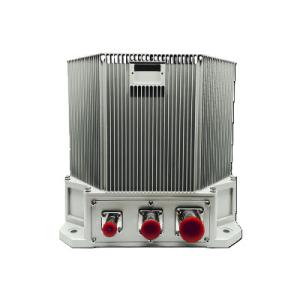

Dubhe-M48 High Precision Velocity Integrated Marine Inertial Navigation System Laser Gyro

Brand Name : Star & Inertia Technology

Model Number : Dubhe-M48

Place of Origin : China

MOQ : 1 set

Price : $1000-$100000

Payment Terms : T/T

Supply Ability : 100 set per year

Delivery Time : 30 work days

Alignment time : ≤1hr

Position accuracy/Pure inertia : 1nm/48h,CEP

Position accuracy/INS/DVL Combination : ≤0.3%D,RMS

Position accuracy/INS/GNSS Combination : better than GNSS

Speed accuracy/Pure inertia : ≤0.6kn,RMS

Speed accuracy/GNSS Combination : ≤0.4kn,RMS

Heading Accuracy/Pure inertia : ≤0.04°sec(L),RMS

Heading Accuracy/INS/GNSS Combination : ≤0.02°,RMS

Pitch & Roll Accuracy/Pure inertia : ≤0.02°,RMS

Pitch & Roll Accuracy/INS/GNSS Combination : ≤0.01°,RMS

Dimensions(Lmm×Wmm×Hmm) : 232×186×160mm

Weight : ＜8.2kg

Temperature : -40℃~60℃

Input Voltage : DC24V(±25%)

Contact Now

Maritime RLG INS(Dubhe-M48)

The long-endurance, high-precision marine optical INS employs laser/FOG gyros and quartz flexure accelerometers as core sensors. Utilizing a "strapdown + modulation" technical architecture with advanced navigation algorithms, it delivers real-time navigation solutions. Offering multiple operational modes (pure inertial, GNSS-aided, and velocity-integrated), the system provides enhanced full-state navigation parameters to meet various marine platform requirements.

Series Maritime Inertial Navigation System(INS-M)
Type Dubhe-M48
Accelerometer Months Bias Repeatability(1σ) ≤10μg
Months Scale Factor Accuracy(1σ) ≤10ppm
Gyro Bias Repeatability(1σ) ≤0.01°/hr
Scale Factor Accuracy(1σ) ≤10ppm
Random walk(1σ) ≤0.003°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude Any Orientation
Speed accuracy/Pure inertia ≤0.6kn,RMS
Speed accuracy/GNSS Combination ≤0.4kn,RMS
Startup time ≤10sec
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ≤1hr
Position accuracy Pure inertia 1nm/48h,CEP
INS/DVL Combination ≤0.3%D,RMS
INS/GNSS Combination better than GNSS
Heading Accuracy Pure inertia ≤0.04°sec(L),RMS
INS/GNSS Combination ≤0.02°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.02°,RMS
INS/GNSS Combination ≤0.01°,RMS
Characteristics Power consumption ＜40W
Dimensions(Lmm×Wmm×Hmm) 232×186×160mm
Weight ＜8.2kg
Temperature -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration 20~2000Hz,6.06g
MTBF ＞10000 hours
